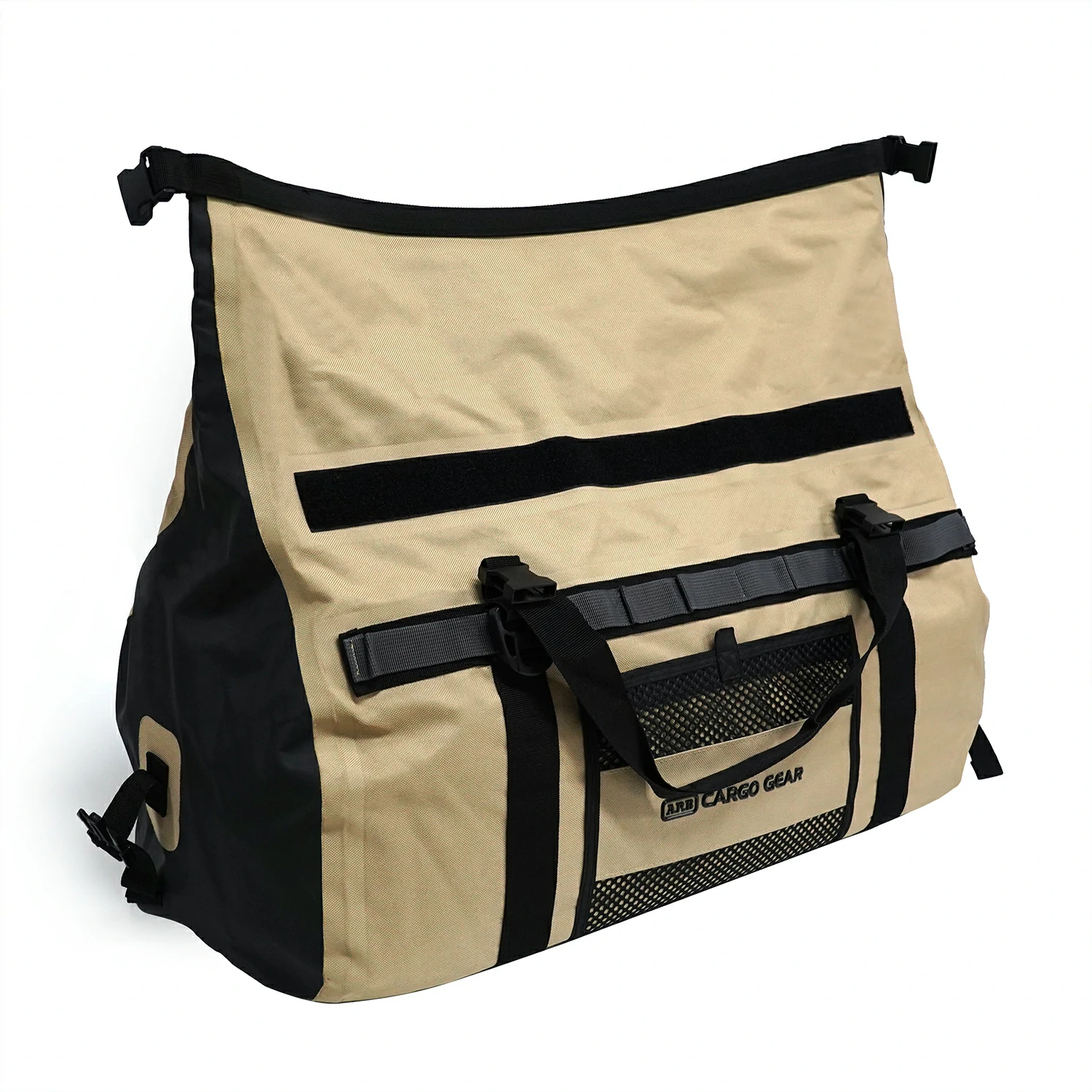

Custom Manufacturing the ARB Cargo Gear Storm Proof Bag (110L)

Engineering Durability for the ARB Cargo Gear Storm Proof Bag

Project Profile

Client: ARB 4x4 Accessories
Product: Cargo Gear Storm Proof Bag (Large / 110 Litres)
Manufacturer: Dingfeng iBagcase (OEM)
Key Tech: High-Frequency (RF) Welding & Box-X Reinforcement

The Manufacturing Challenge

ARB required a soft-shell cargo solution capable of surviving the rigorous conditions of the Australian Outback. Unlike standard gym duffels, this bag functions as external storage, often strapped to roof racks exposed to driving rain, red dust, and high-speed wind loads.

The Engineering Constraints

Waterproofing vs. Stitching: Traditional needle stitching creates thousands of perforation holes, which become leak points under storm pressure.
Load Capacity: The 110L volume means the bag effectively carries 30kg-50kg of recovery gear. Standard handle attachments would fail under the g-forces of off-road driving.
Abrasion Resistance: The base must withstand constant friction against metal roof bars without wearing through.

Dingfeng iBagcase Solutions

Phase 1: Material Science (PU Coated Oxford vs. PVC)

To meet the "Storm Proof" standard without the stiffness of industrial tarps, we sourced a specialized PU (Polyurethane) Coated Oxford Weave.

Performance: Unlike generic PVC which can crack in freezing temperatures, this fabric maintains flexibility while offering a high Hydrostatic Head (waterproof rating).
Base Reinforcement: For the bottom panel (High-Wear Zone), we utilized a heavy-duty rubberized PVC to prevent abrasion from roof racks.

Phase 2: RF Welding Technology (Seam Integrity)

To eliminate needle holes in the main compartment, Dingfeng moved from traditional sewing to Radio Frequency (RF) Welding.

Process: Using electromagnetic energy, we fused the TPU coating of the fabric panels at the molecular level.
Result: The seams became a solid, continuous piece of material, ensuring zero water ingress even at highway speeds.

Phase 3: Structural Reinforcement & Load Distribution

While the body is welded, the load-bearing system requires physical reinforcement.

Continuous Webbing Architecture: We designed the webbing straps to encircle the entire girth of the bag. This ensures the lift force is carried by the webbing loop rather than pulling on the fabric.
Box-X Stitching: At critical anchor points, we applied high-density Box-X (Bartack) stitching to lock the handles in place, capable of withstanding 50kg+ dynamic loads.

Phase 4: Closure System

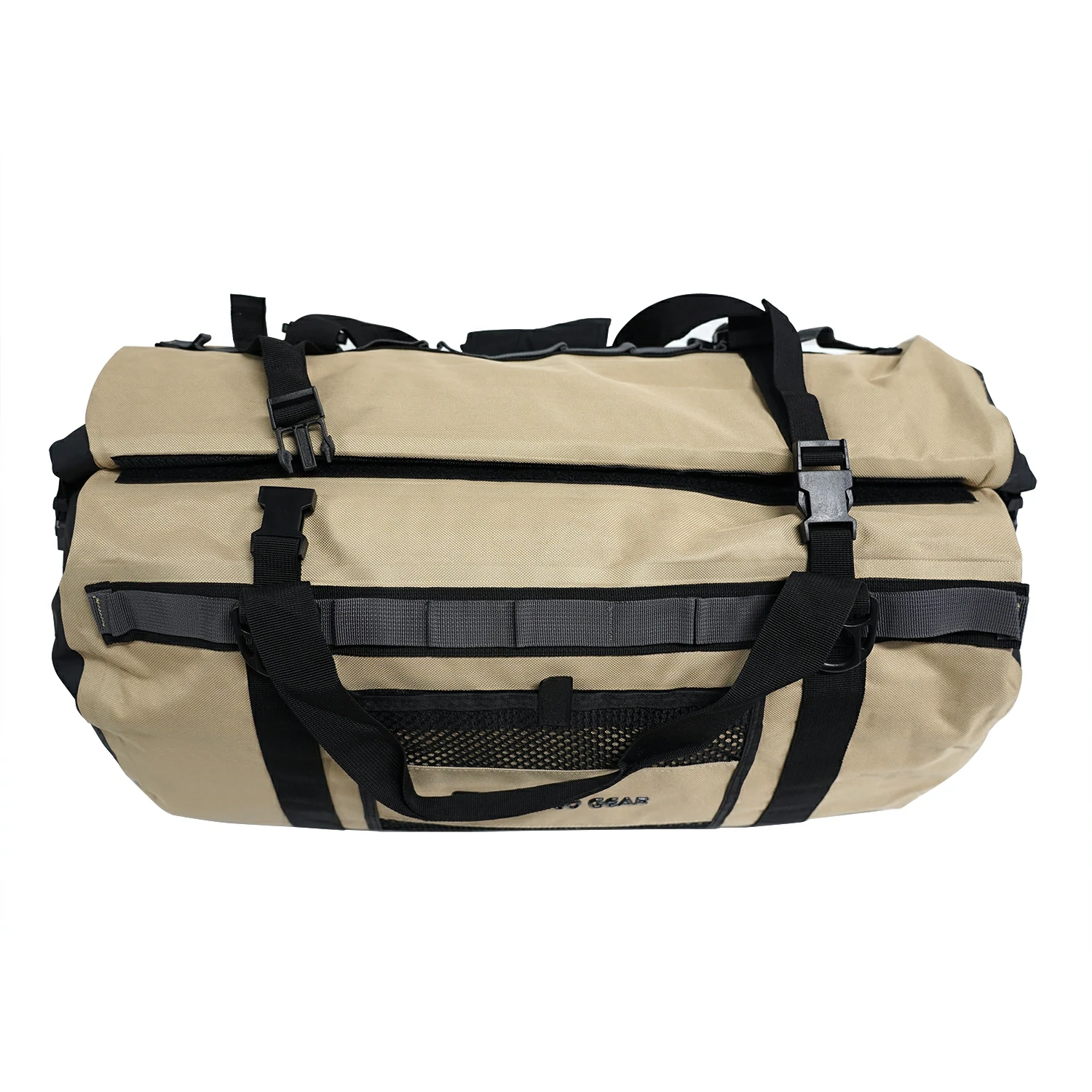

Zippers are the most common failure point in dusty environments. We implemented a Roll-Top Closure with a stiffened rim to create a mechanical seal against dust and water.
Hardware: We integrated "Sure Grip" buckles that maintain tension under vibration, ensuring the bag stays sealed on rough terrain.
