Technical Solution

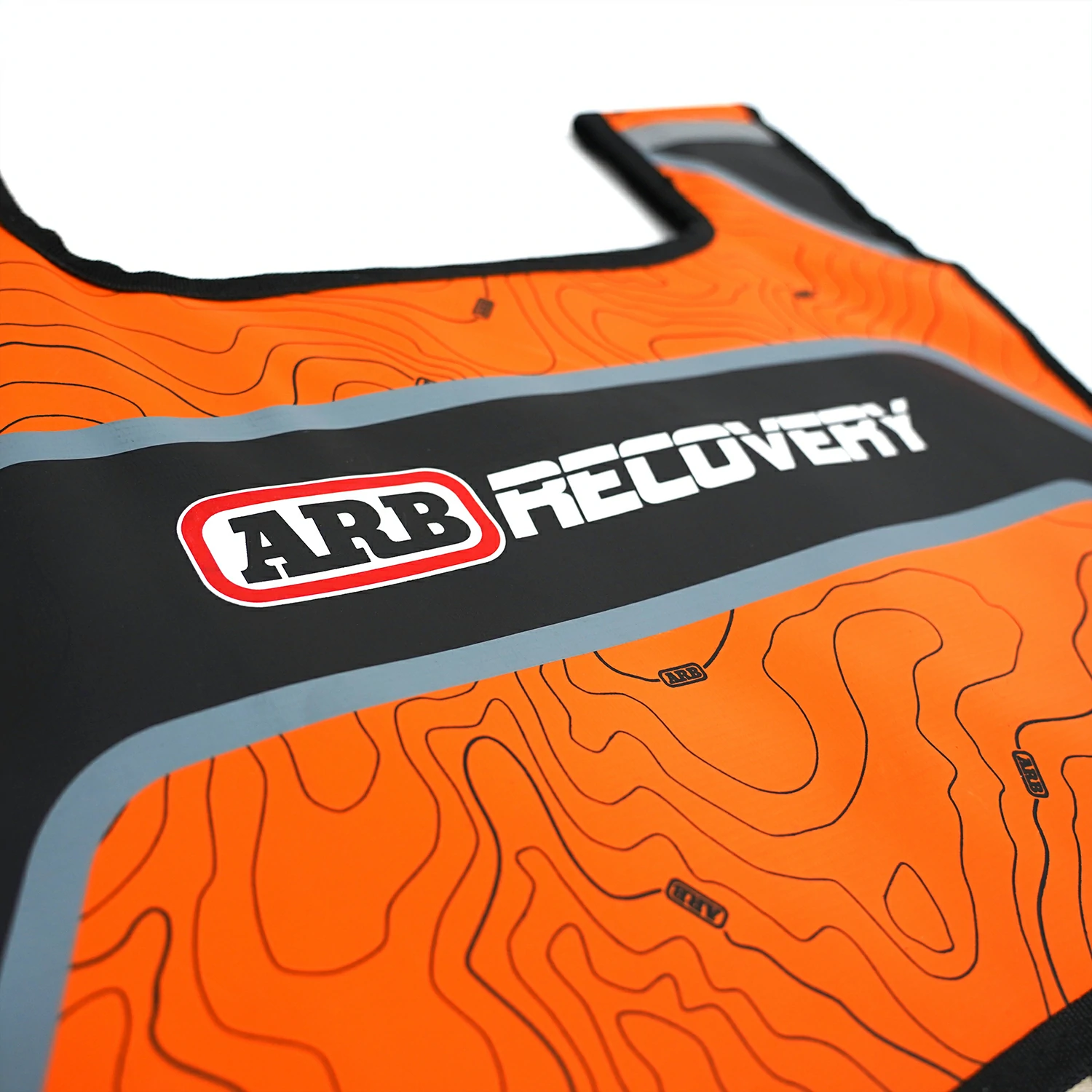

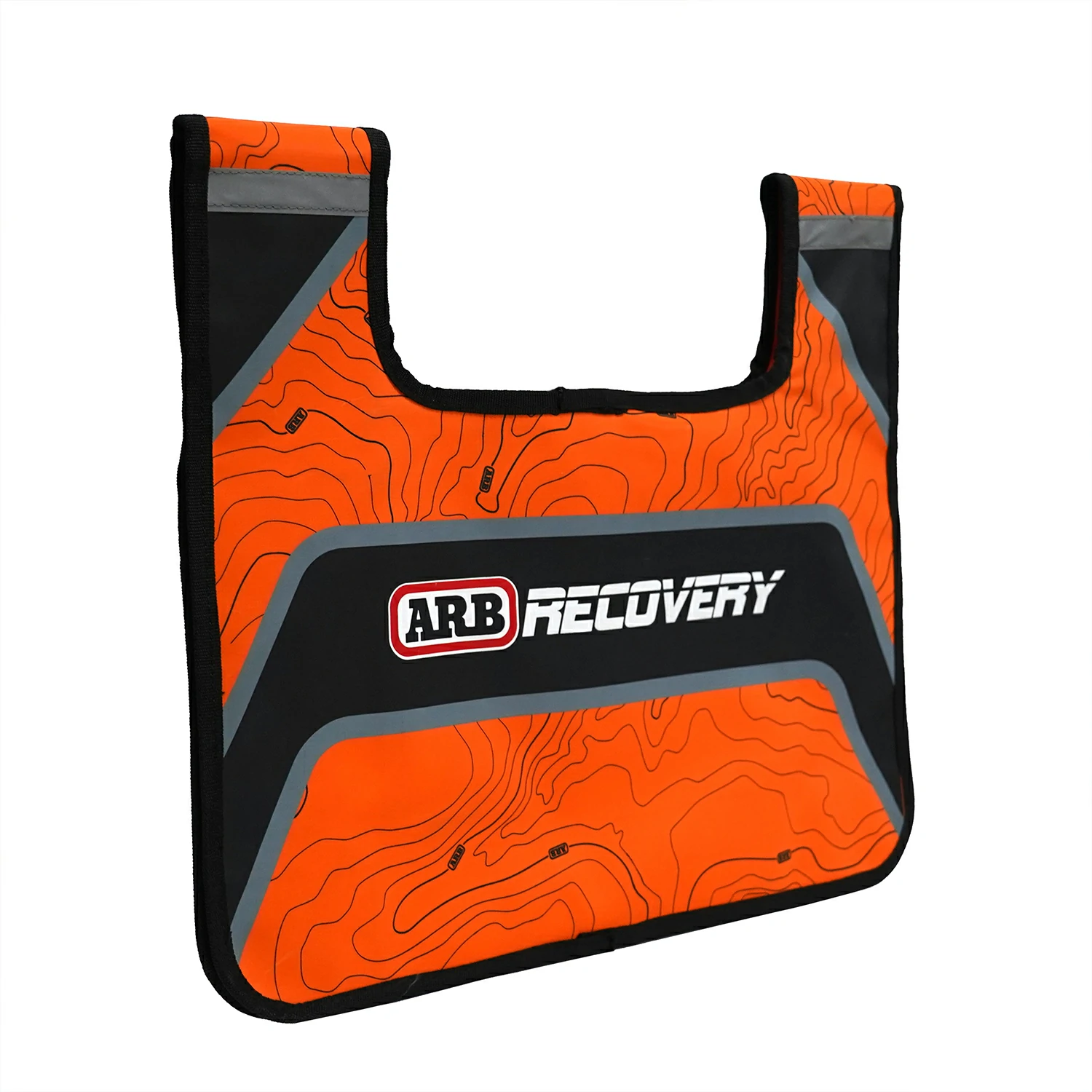

1. Material Science: High-Density Vinyl Composite

Standard Oxford/Nylon fabrics were REJECTED due to insufficient mass and impact resistance. We implemented a customized Heavy-Duty Vinyl specification.

Tear Strength: Validated > 500 N/cm (Lab Tested). The material structure prevents the "zipper effect" (micro-tears expanding) during shock loads.
Environmental Stability: Treated for Grade 4-5 UV resistance and hydrophobic properties (does not absorb water/mud weight).
Energy Damping: The specific gravity of the vinyl was calibrated to provide maximum downward force on a whipping line.

2. Structural Reinforcement (The "Safe-Sew" Protocol)

To ensure the seam is stronger than the material itself, Dingfeng engineers utilized a Load-Path Optimization process:

Thread Spec: Industrial Bonded Polyester Thread (Tensile Strength > 400 N/mm²). Unlike standard cotton-poly blends, this resists rot and abrasion.

Stitch Pattern:
Box-X Stitching: Applied to all Velcro anchors to prevent detachment under tension.
Bar-tack Reinforcement: Applied to pocket corners and high-stress junctions.
Load Distribution: Thermal-bonded padding is inserted under stitch lines to distribute pull-force, preventing needle-hole elongation.

3. Functional Assembly

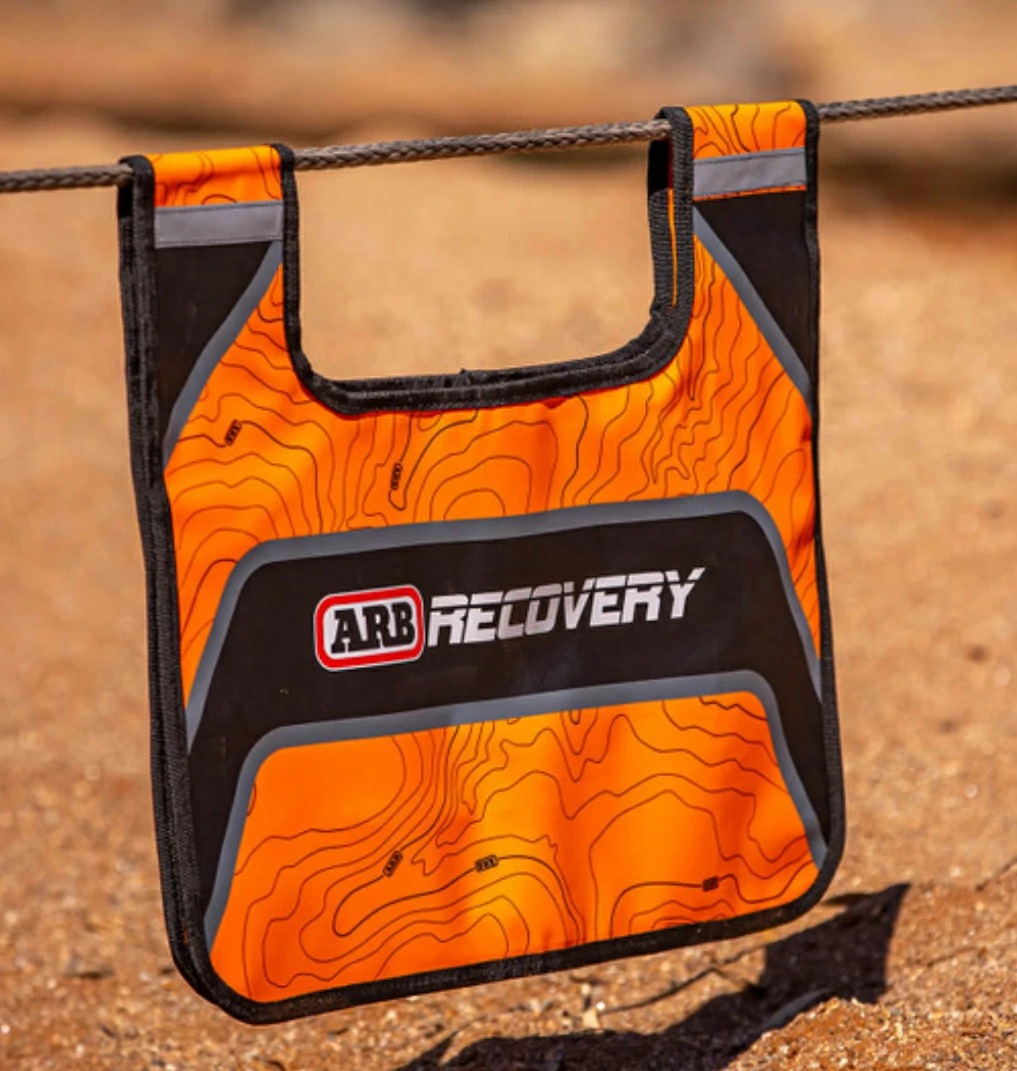

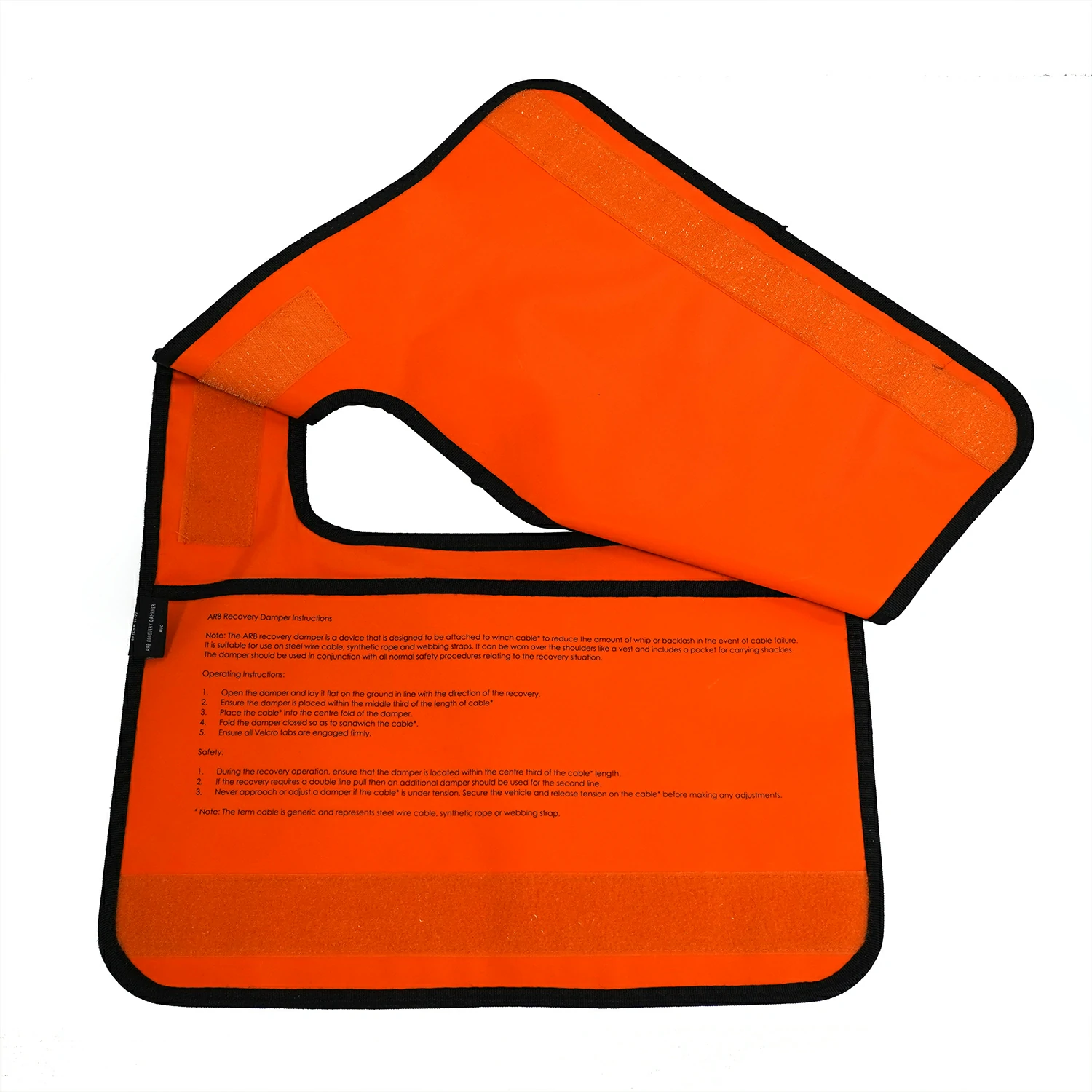

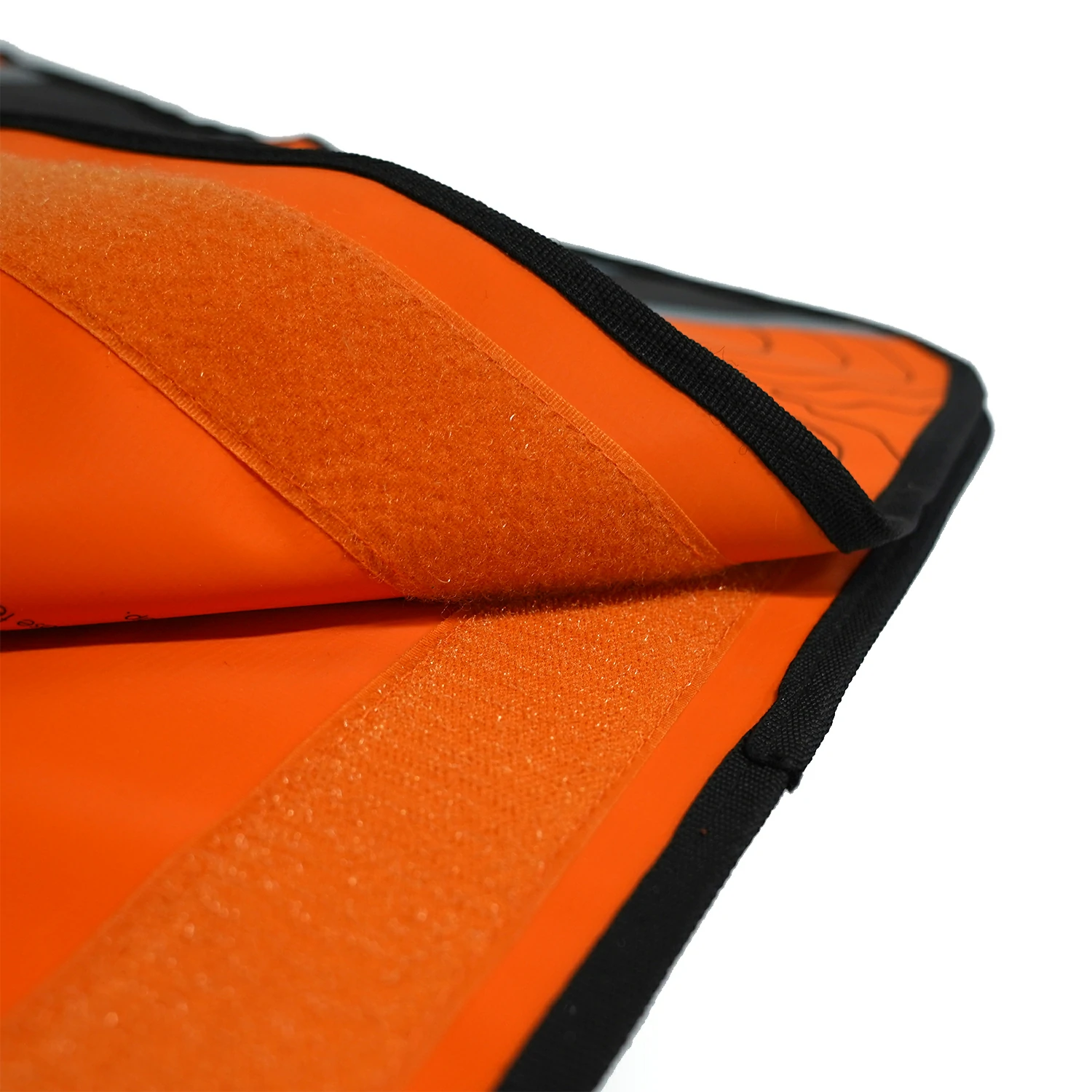

High-Shear Velcro: Selected to maintain grip during violent vibration, ensuring the damper stays positioned on the cable.
Balanced Storage: Pockets for snatch blocks are CNC-cut to ensure precise center-of-gravity (CoG) balance, essential for the damping physics.

Quality Control

QC Protocol: Batch Consistency
Manufacturing for a global Tier-1 brand requires strict SOPs:
Raw Material: Every vinyl batch is tested for thickness and density consistency before entering the cutting line.
CNC Precision: Automated cutting guarantees 100% dimensional accuracy.
Destructive Testing: Random samples from each production run undergo simulated tension testing to verify stitch locking strength.
