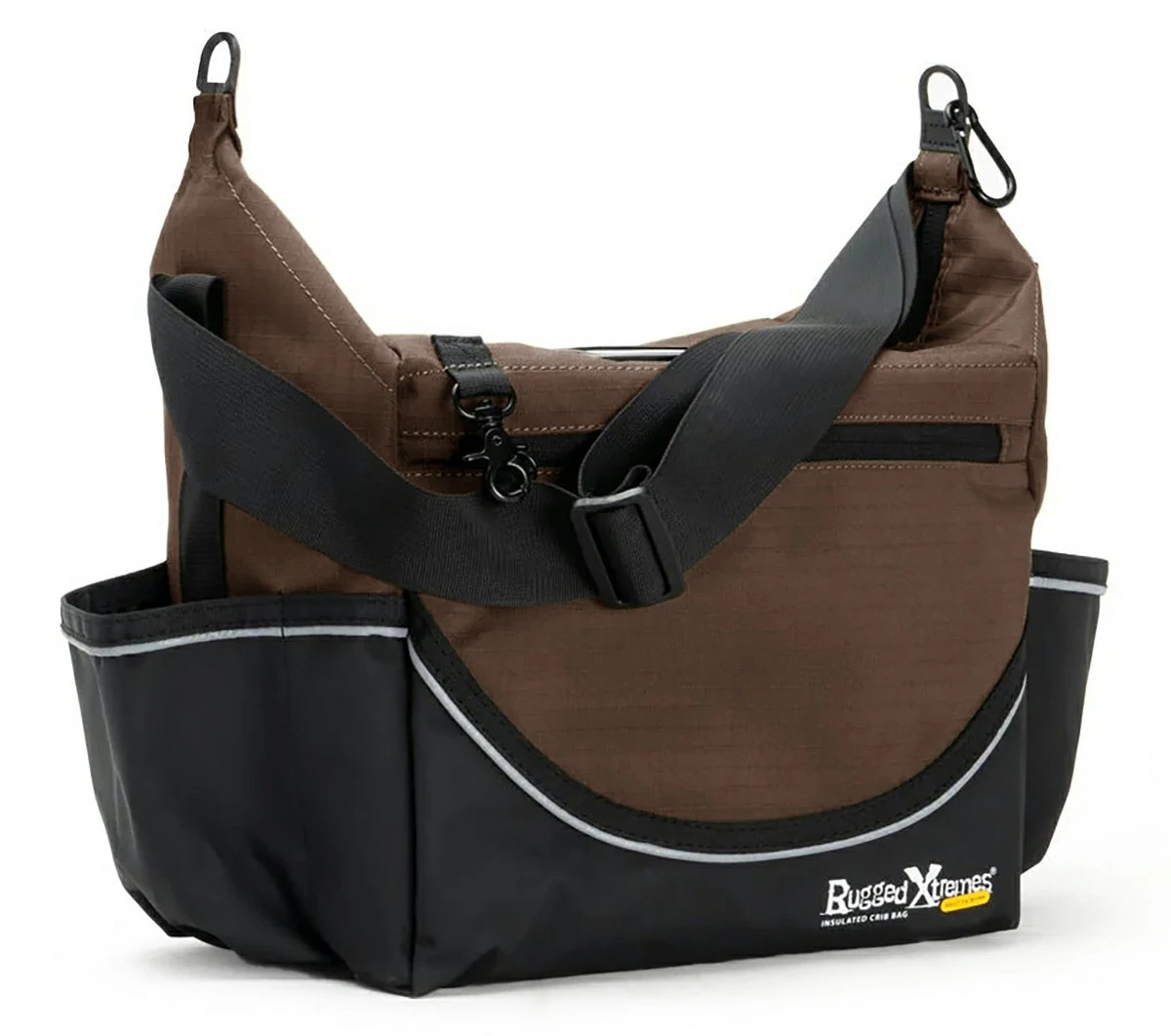

Engineering the Heavy-Duty Brown Canvas Crib Bag Prototype

The Challenge: Engineering for the Pilbara Dust

Rugged Xtremes sets the benchmark for industrial gear in Australia. While their retail "Safety Green" line is iconic, the initial development brief called for a Heavy-Duty Brown (Earth) prototype.

The objective was to create a "Crib Bag" (insulated utility bag) specifically designed to camouflage the red iron-ore dust found in open-cut mines, which instantly stains standard high-vis gear. The challenge was not just color matching, but material engineering:

UV Stability:

Creating a custom brown dye that withstands the Australian sun without fading to pink/grey (Grade 4-5 UV resistance required).

Structural Rigidity:

The bag needed to hold 1.5L bottles and tools without collapsing, unlike standard soft coolers.

System Integration:

It required precise implementation of the POD Connect rail system for modular attachment.

Dingfeng's Manufacturing Solution

1.Custom Material Engineering (The Brown Canvas)

We bypassed stock market fabrics and commissioned a custom run of Waterproof Ripstop Polyester Canvas.

The Spec: We utilized a high-density canvas with a hydrophobic PVC backing.
The Result: We achieved a 98% color match to the client's "Source Brown" sample. The fabric passed the Martindale Abrasion Test, ensuring it withstands being dragged on rocky ground—a critical requirement for mining durability.

2. Thermal Architecture: Welding vs. Stitching

A common failure point in industrial lunch bags is leakage through needle holes.

The Fix: We replaced traditional stitching in the main compartment with High-Frequency (HF) Voltage Welding.

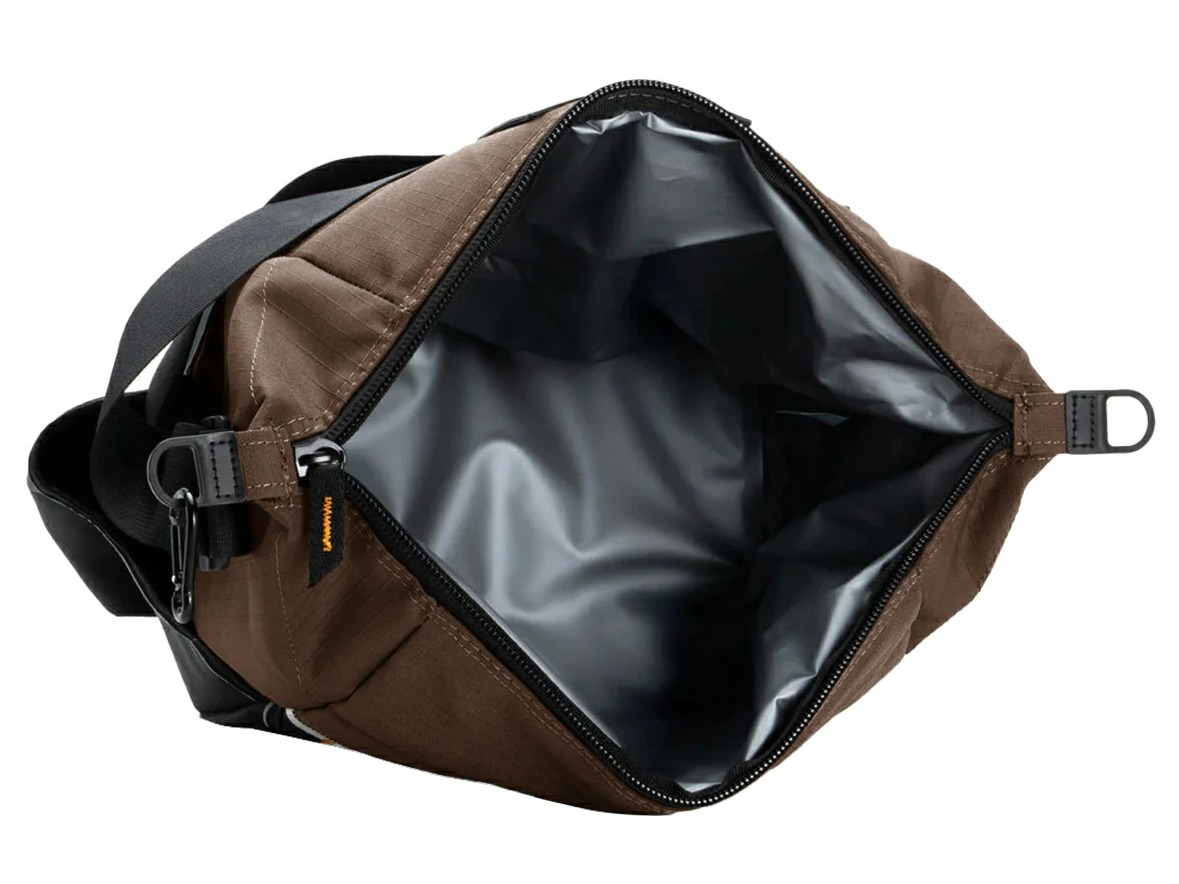

Benefit: This fuses the Food-Grade PEVA lining together, creating a seamless, 100% waterproof internal bucket. If a drink spills or ice melts, the liquid stays inside the liner, protecting the user's vehicle and tools.

3. Heavy-Duty Hardware & POD Connect

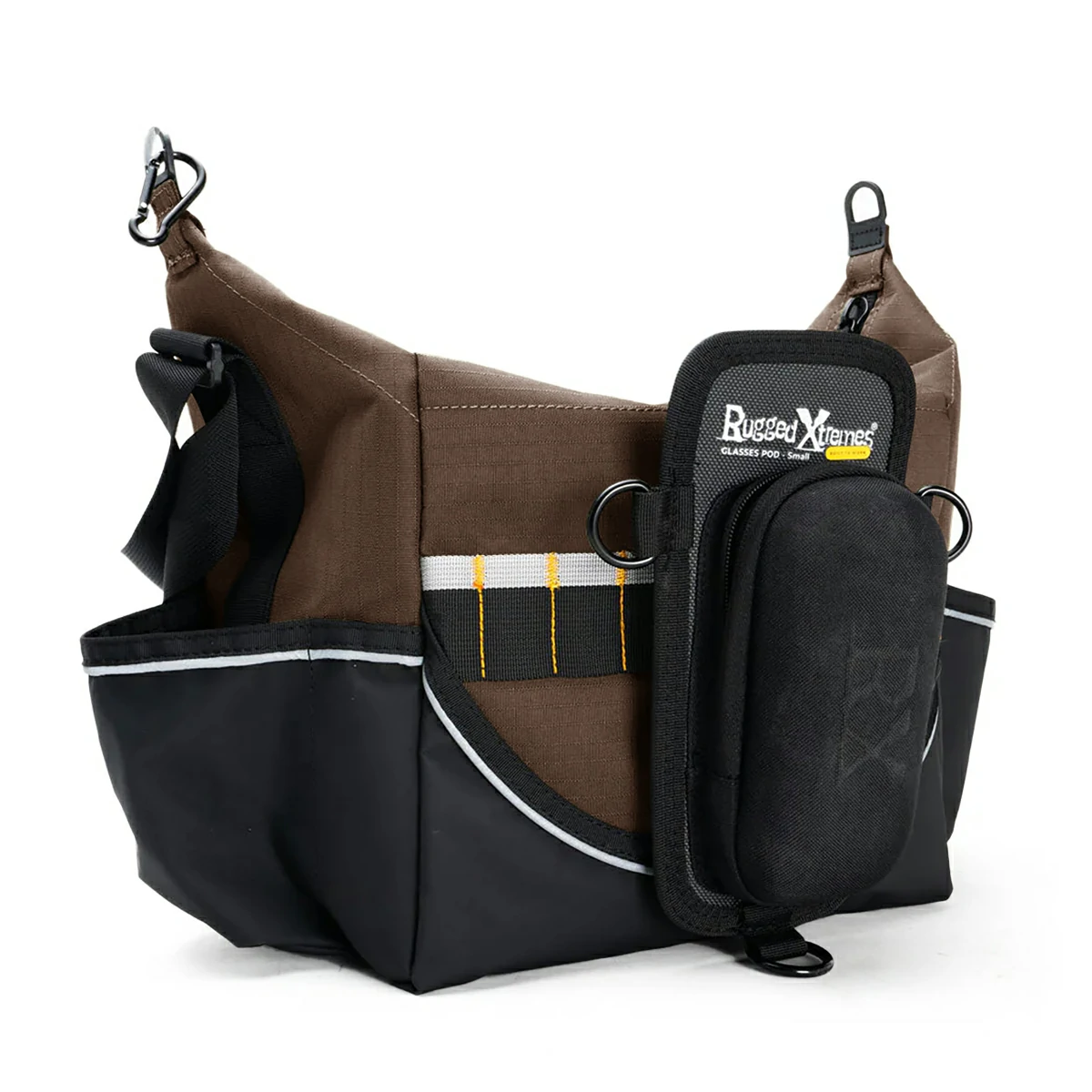

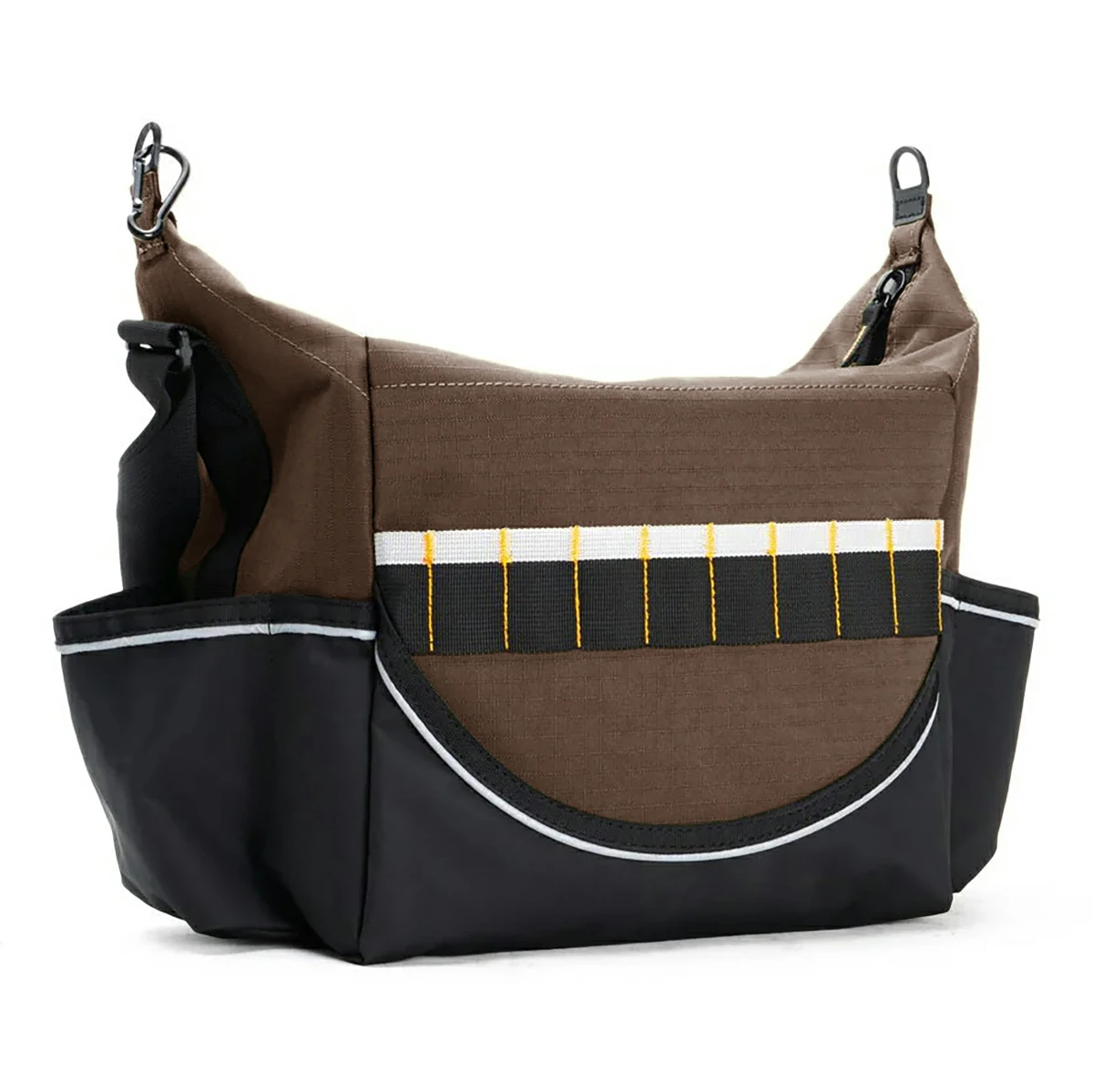

Rail Precision: The POD Connect rails on the rear required strict sewing tolerances (±1mm). Our engineering team created a custom sewing jig to ensure every bar-tack was perfectly aligned, guaranteeing that external tool pods would clip on securely.

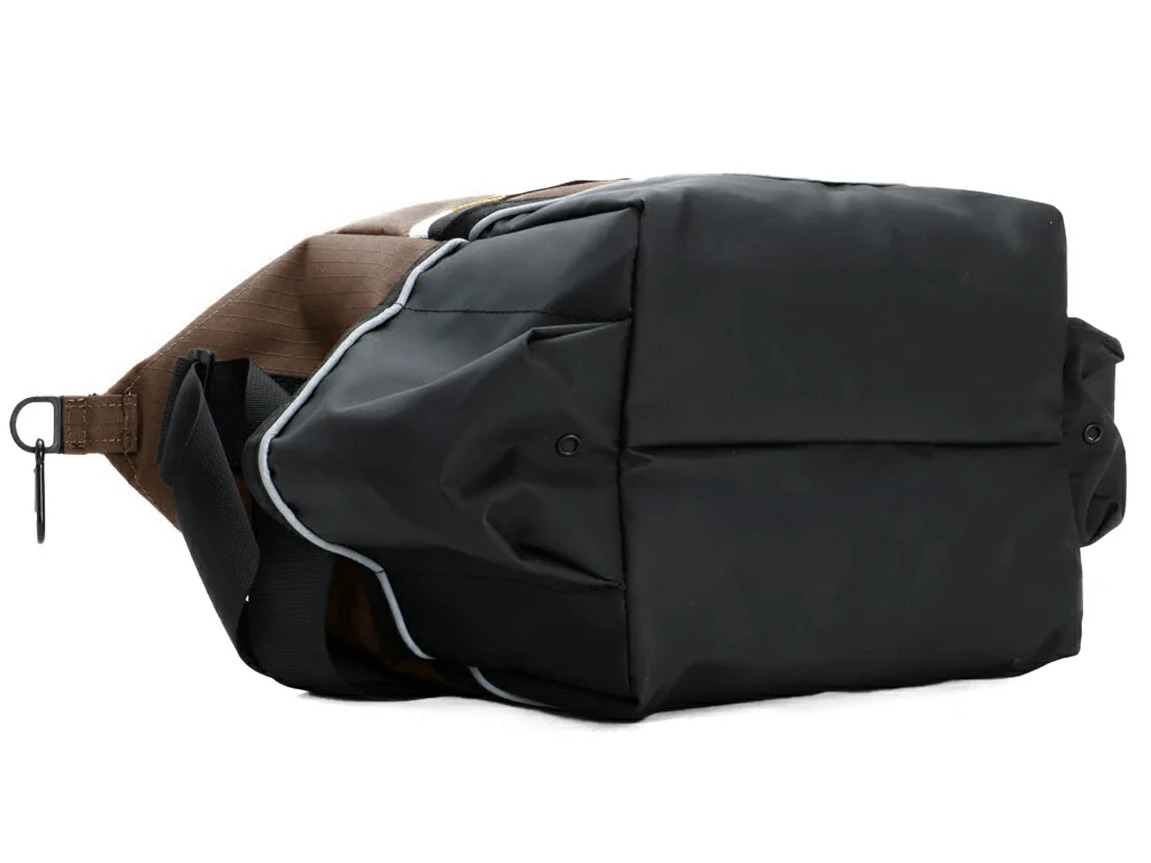

Reinforced Base: We integrated a heavy-duty Black PVC Base. This abrasion-resistant layer prevents moisture from wicking up when the bag is placed on wet or muddy ground.

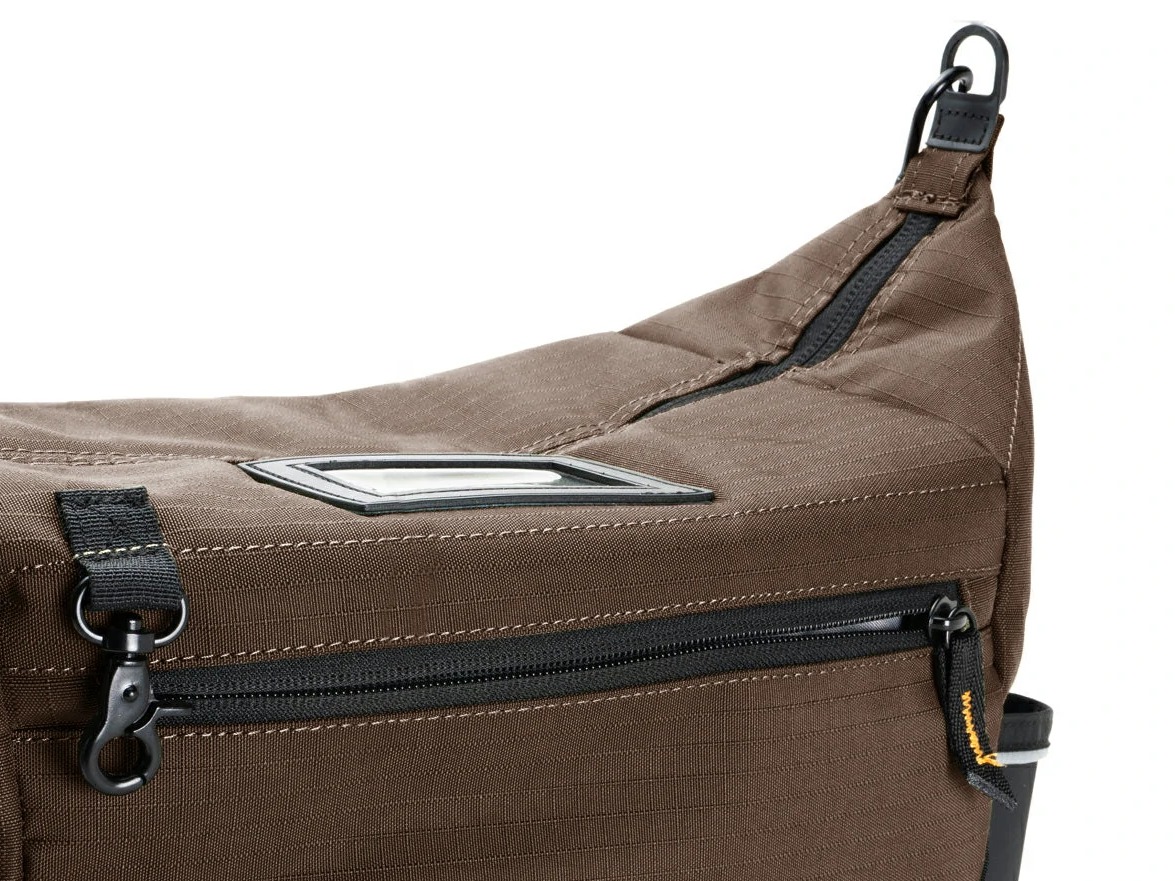

Zippers: We installed #10 Heavy-Duty Zippers with oversized pullers, allowing for smooth operation even when the user is wearing thick safety gloves.

The Outcome

The Brown Development Sample successfully passed Rugged Xtremes' field testing for thermal efficiency and load-bearing capacity (tested with 20kg suspension).

Although the mass-market release shifted to Green for high-visibility compliance, this Brown prototype validated Dingfeng iBagcase’s ability to handle complex OEM requirements—from custom color formulation to technical heat-welding processes—delivering a product built "Rugged" from the ground up.
