OEM Production Review: Milwaukee PACKOUT Duffel Tool Bag (38cm OPE Green Series)

The PACKOUT Modular Storage System defines the professional tool storage market. For Dingfeng iBagcase, the manufacturing mandate was strictly defined: produce a soft storage solution that integrates seamlessly with the rigid PACKOUT ecosystem while meeting the brand's "Nothing But Heavy Duty" durability standards.

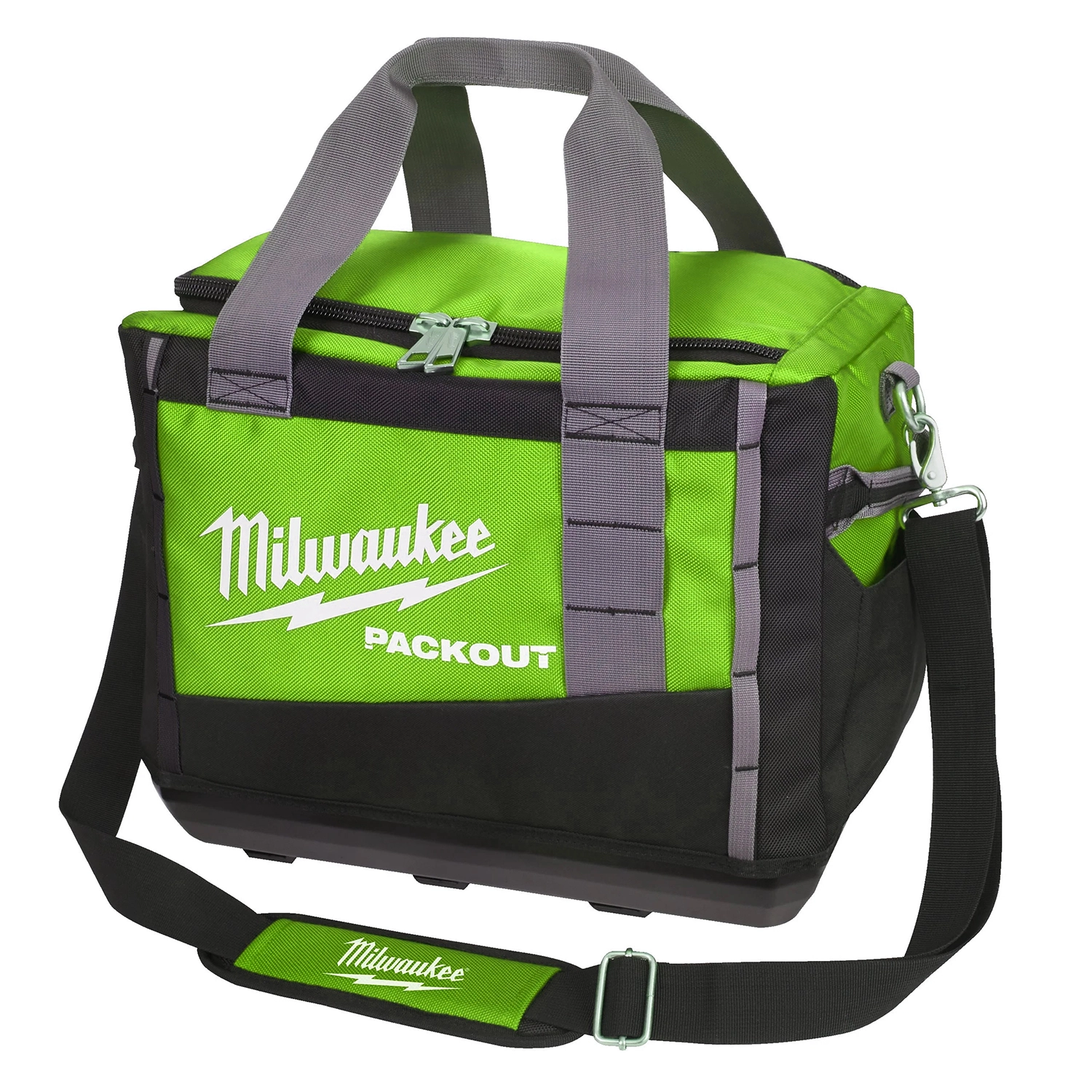

This case study outlines the technical challenges and manufacturing protocols deployed by Dingfeng iBagcase to deliver the 38cm High-Vis Green variant, specifically designed for the Outdoor Power Equipment (OPE) sector.

Manufacturing Challenges & Solutions

1. The "Hybrid" Assembly:

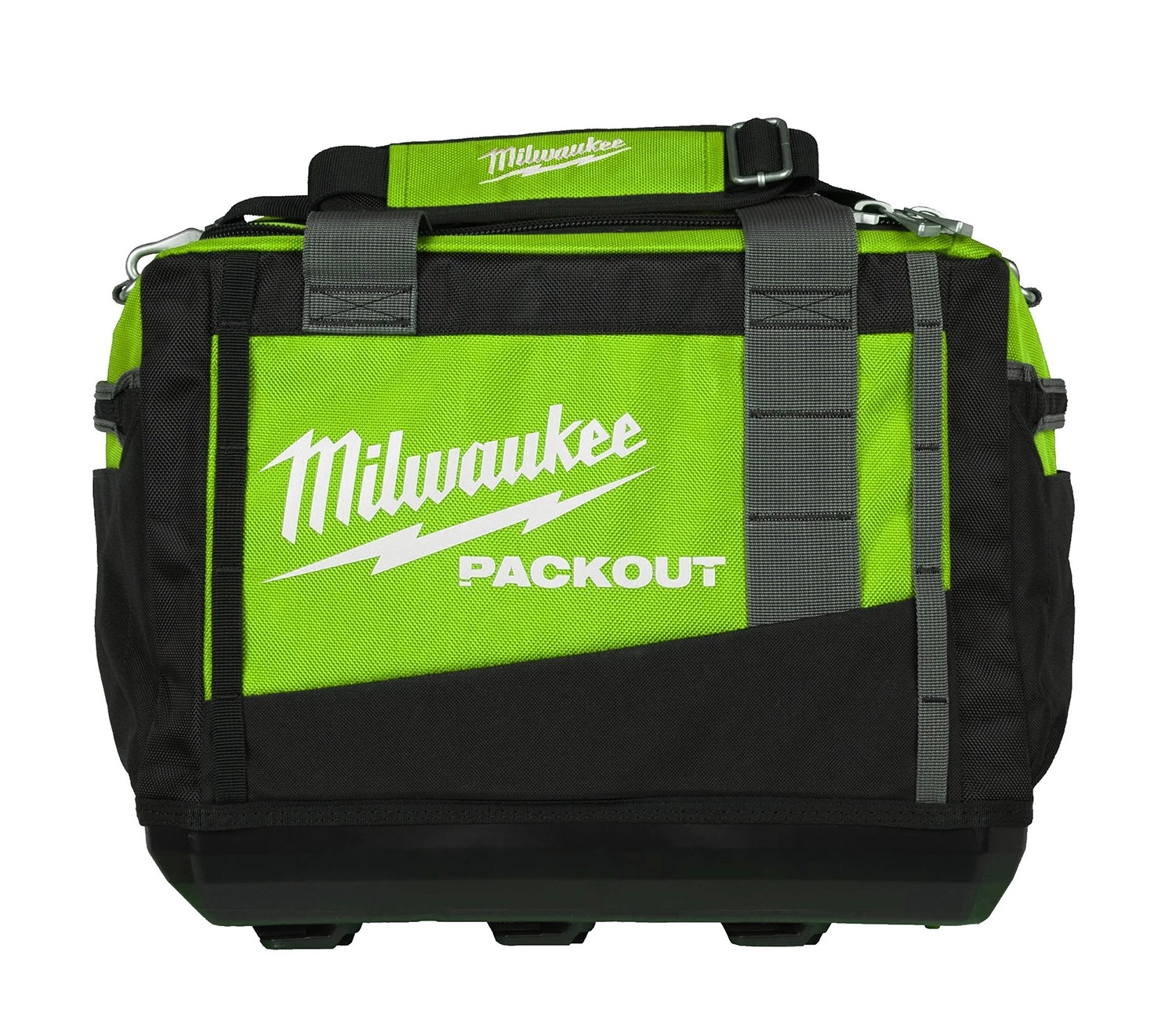

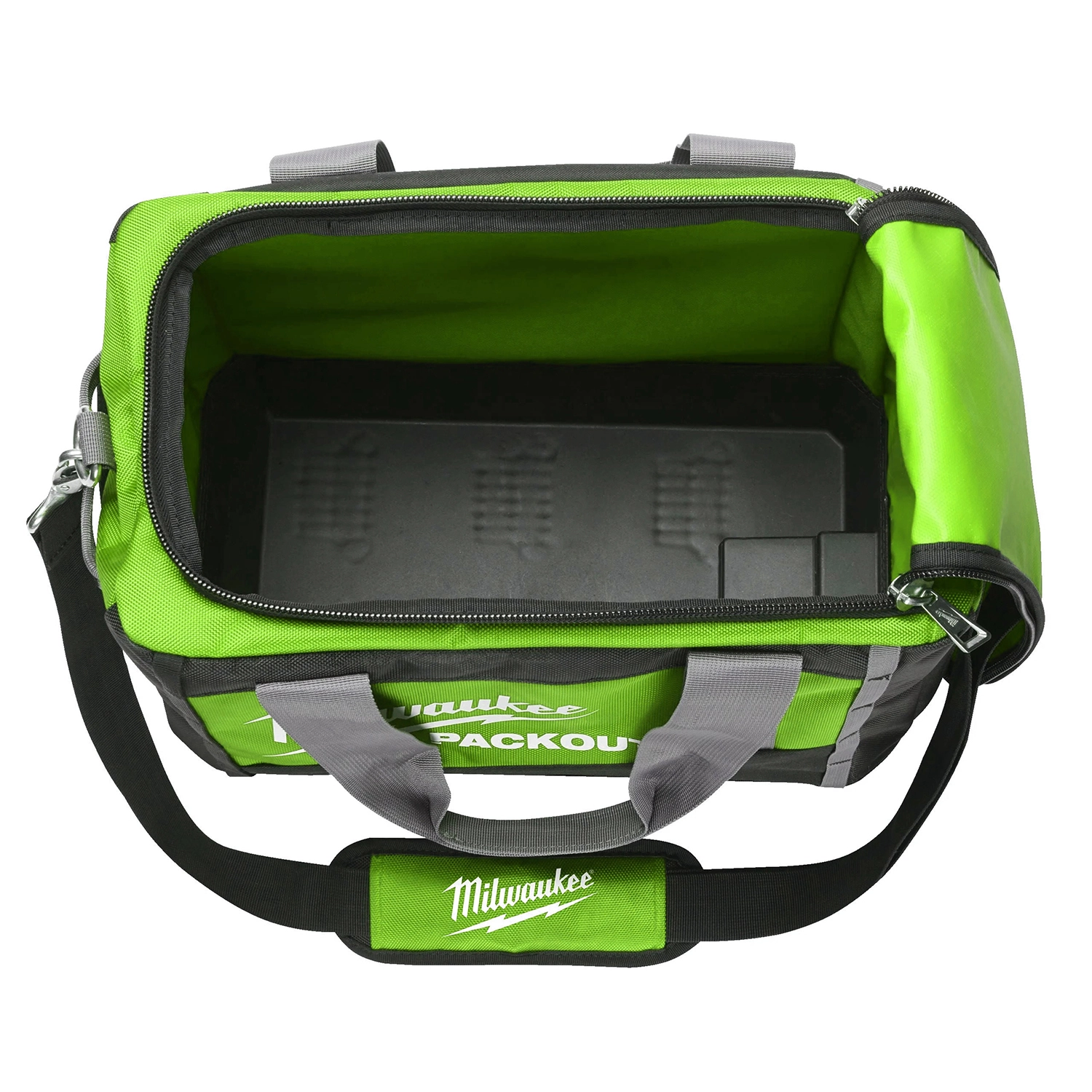

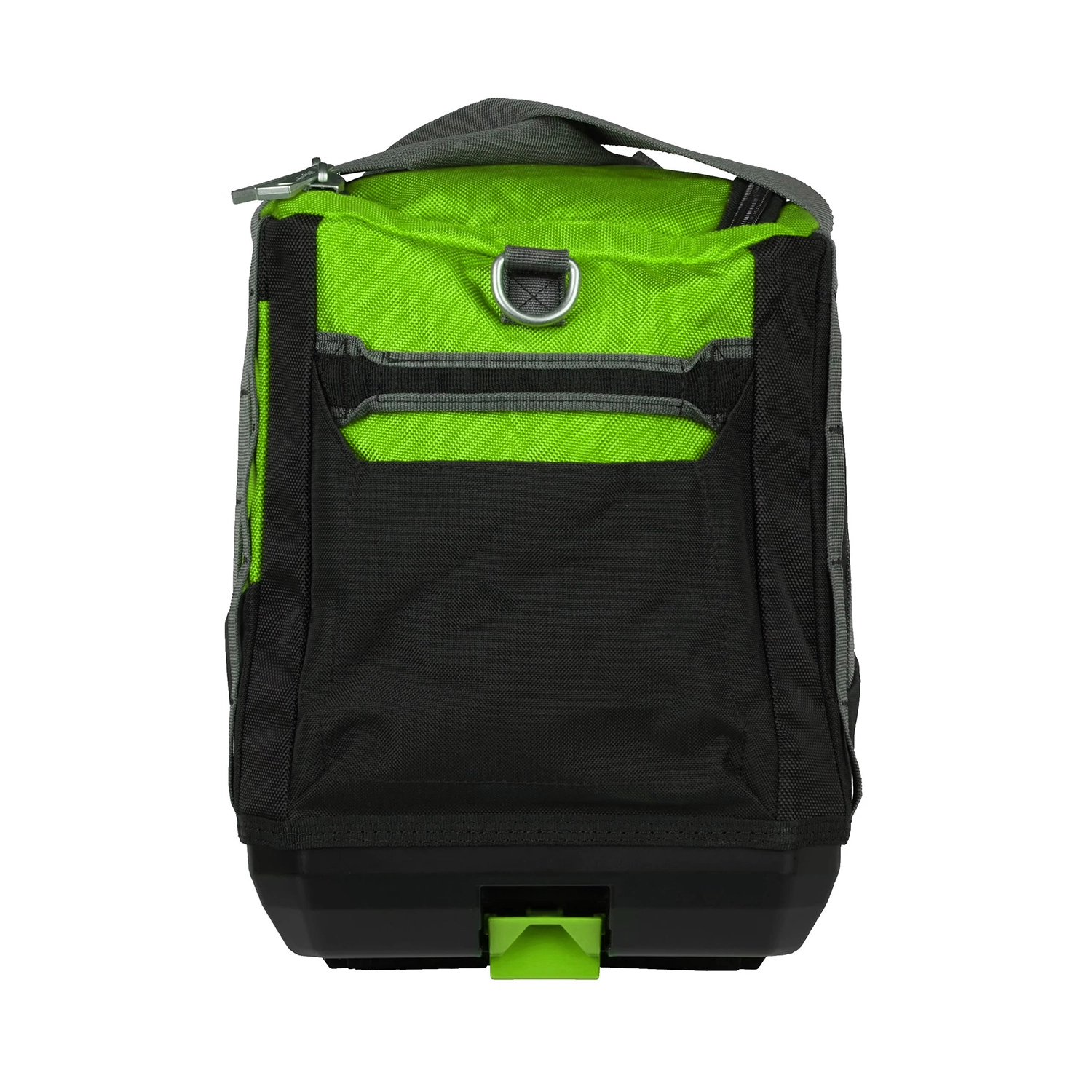

Textile to Rigid Base The defining feature of this SKU is the Hybrid Construction. The bag body is flexible fabric, but the base is a rigid, impact-resistant molded polymer.

The Engineering Hurdle:

Stitching through heavy-duty nylon into a rigid plastic frame is the most common failure point in tool bag manufacturing. Standard machines cannot maintain needle penetration force without deflection, leading to skipped stitches or compromised water resistance.

Our Solution:

Dingfeng engineers developed a Custom Rotary Jig to secure the molded base during assembly. We utilized high-torque walking foot machines equipped with Titanium-coated needles (Size 23/160). This setup allows for a precise "Channel Lock" stitch that mechanically binds the 1680D fabric to the polymer rim without needle breakage, ensuring the base remains waterproof and structurally sound.

2. Handling 1680D Ballistic Material

Milwaukee specifies 1680D Layered Ballistic Nylon—a material significantly more abrasive and dense than standard 600D polyester.

The Solution:

To prevent edge fraying during assembly, all pattern pieces are cut using Automated Laser Cutting which cauterizes the fabric edges. We utilize Bonded Nylon 6.6 Thread (V92 spec), which offers high tensile strength and heat resistance, ensuring seams do not burst even when the bag is loaded to its 20kg capacity.

3. Color Fastness for High-Vis SKUs

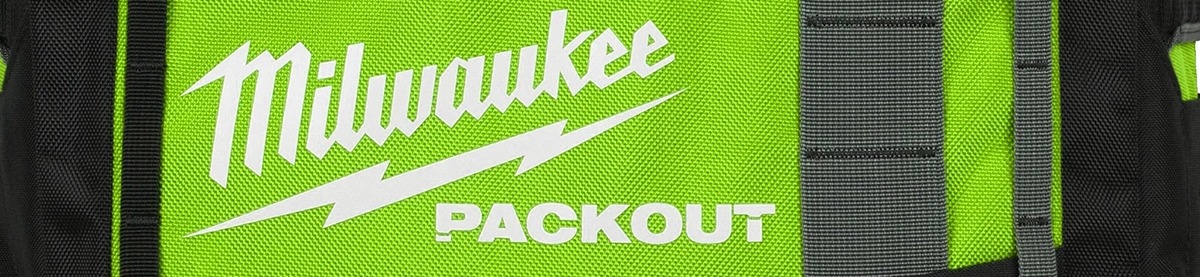

The project required the High-Vis Green colorway (as seen in product images), distinct from the standard Milwaukee Red.

The Solution:

Neon pigments on ballistic nylon are prone to UV fading. We enforced a strict Lab Dip protocol with UV stabilizers added during the dyeing process. The fabric underwent 500-hour accelerated weathering tests to ensure the green saturation (Delta E < 1.0) matches the hard plastic components and remains vibrant on outdoor job sites.

Quality Assurance (QC) Protocols

Before ex-factory delivery, the "Green Batch" underwent specific destructive testing in our internal lab:

Drop Test:

Loaded with 20kg of steel weights, dropped from 1 meter onto concrete to verify the integrity of the molded base connection. Pass Rate: 99.98%.

Handle Jerk Test:

5,000 cycles at 15kg load to verify the Box-X stitching on strap anchors.

Hardware Corrosion Test:

24-hour Salt Spray test on all metal D-rings and zipper pulls.
