Manufacturing Case Study: 90L Heavy-Duty Gear Box with Integrated Metal Frame

Project Profile

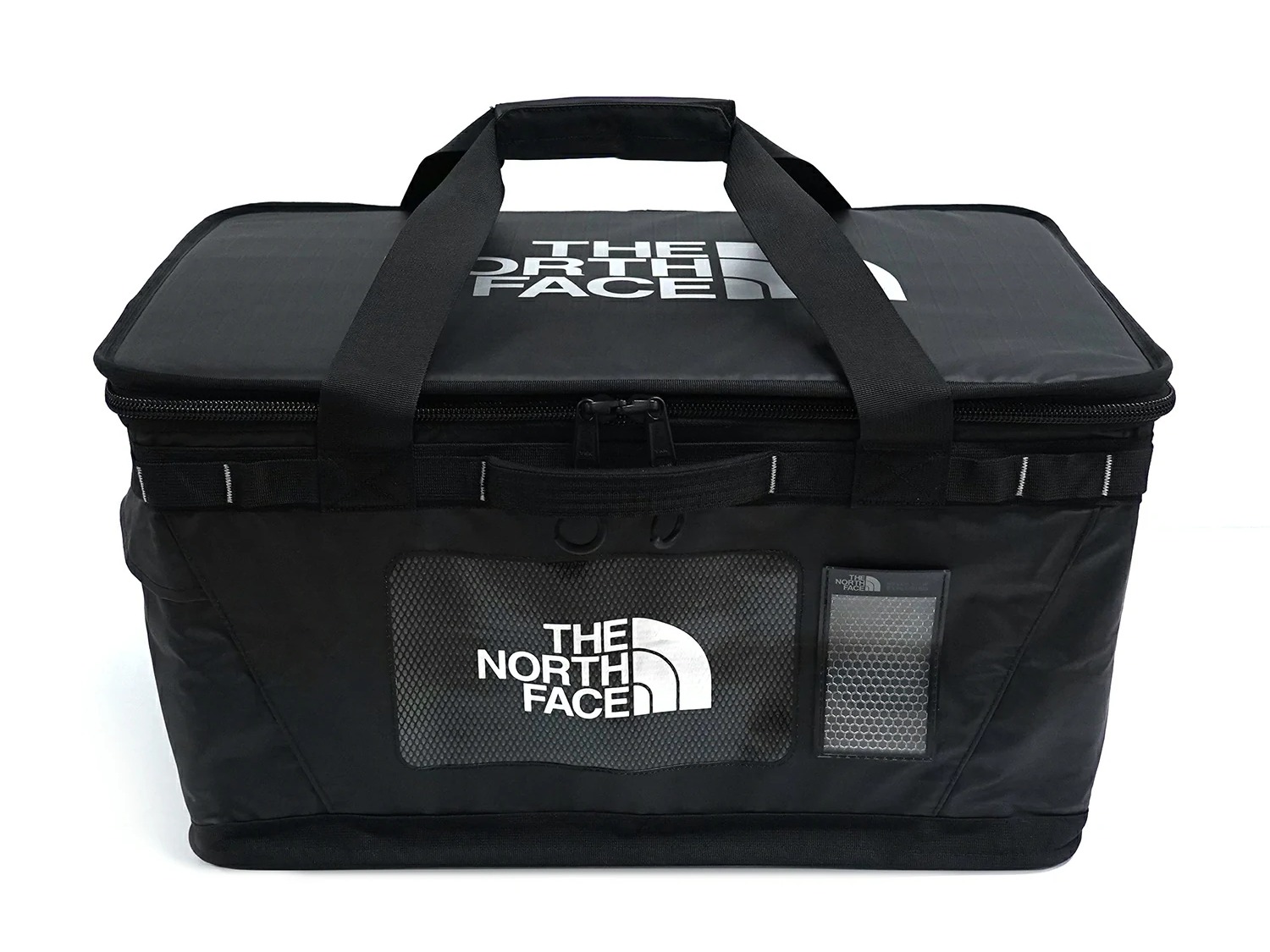

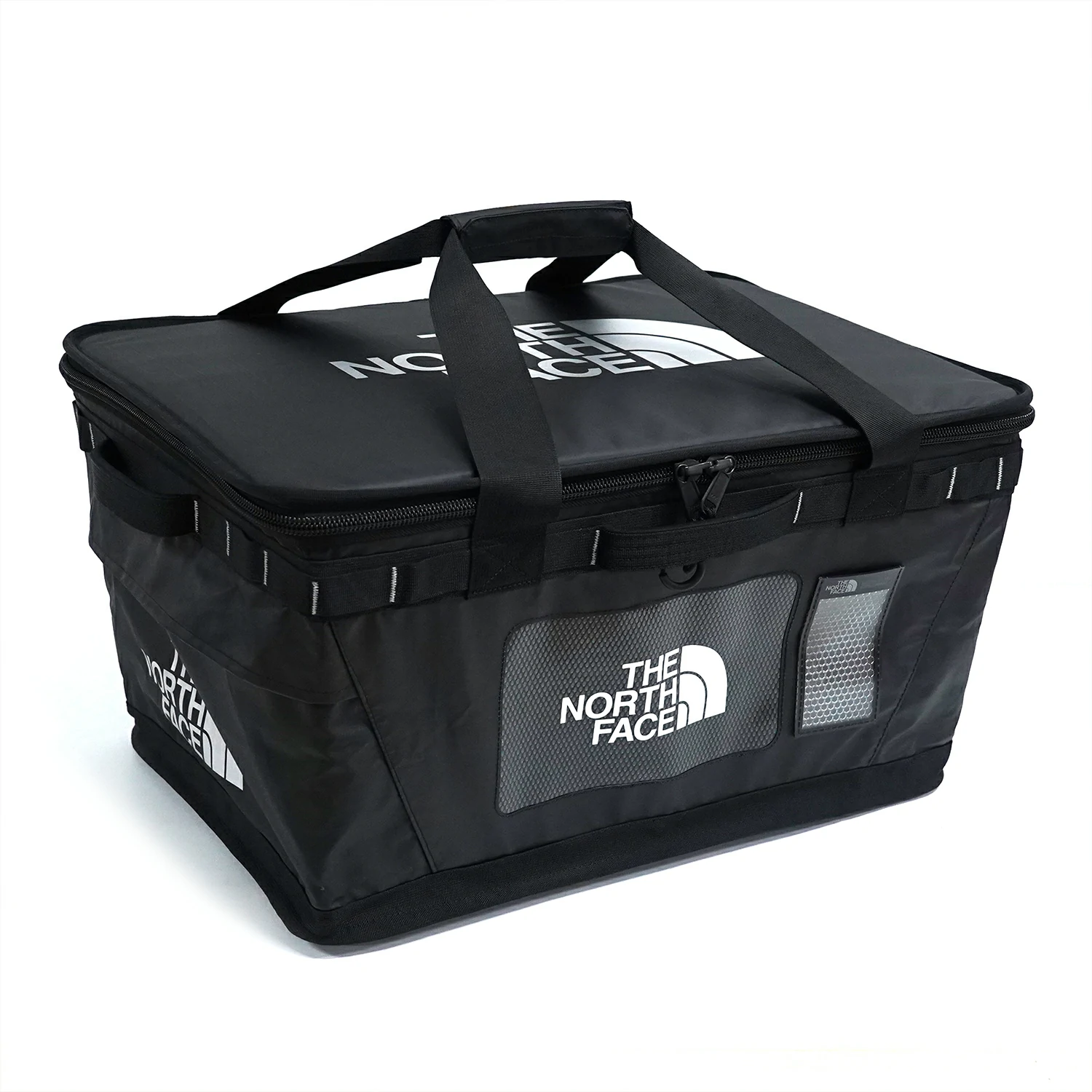

Product: Base Camp Gear Box – Storage L (90L)
Client Category: Global Outdoor & Expedition Brand
Material Spec: 300D Recycled Polyester with TPU Laminate (Phthalate-Free)
Manufacturing Focus: Structural Integration, Heavy-Gauge Sewing, Hardware Assembly

The Manufacturing Challenge

The client’s brief was explicit:

produce a 90-liter storage unit that performs like a rigid crate but collapses like a duffel bag. As noted in the development phase (referencing the "wall panels with metal rod" design requirement), the critical benchmark was to replicate the structural integrity of a hard case using soft materials.

This posed two specific production hurdles:

1.Structural Tension: The internal metal rods must fit into the side walls with zero tolerance. If the fabric sleeve is too loose, the box collapses; too tight, and the rods cannot fold down.
2.Material Difficulty: The specified 300D Recycled Polyester with TPU coating is highly durable but difficult to sew. The rubberized coating creates high friction for standard sewing feet, often leading to skipped stitches or fabric puckering.

Engineering Solutions

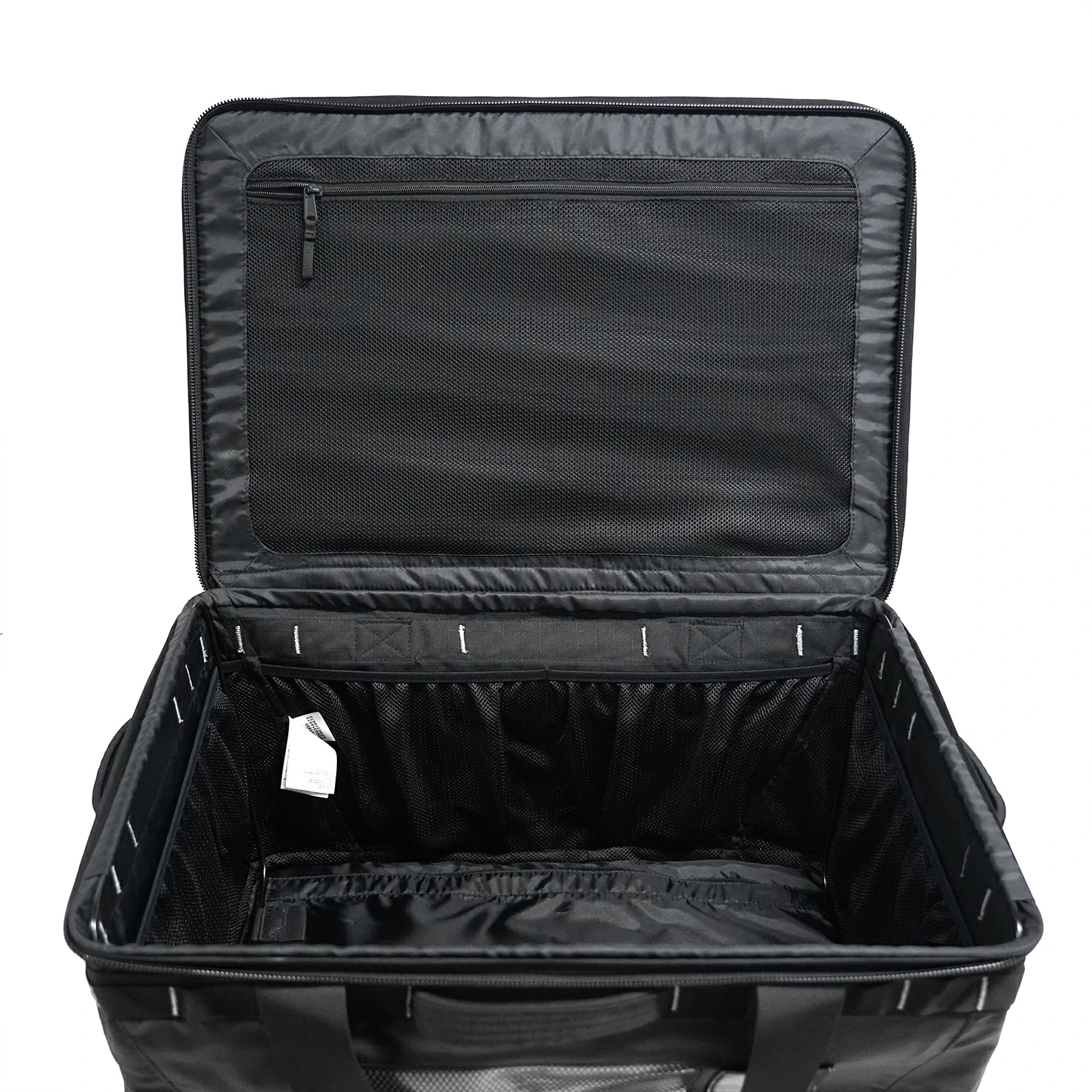

A. Precision Metal Kickstand Integration

To achieve the "pop-up" rigidity, Dingfeng engineers developed a reinforced anchoring system for the folding metal rods.
Process: We designed a custom sewing jig to maintain tension on the side panels during assembly.

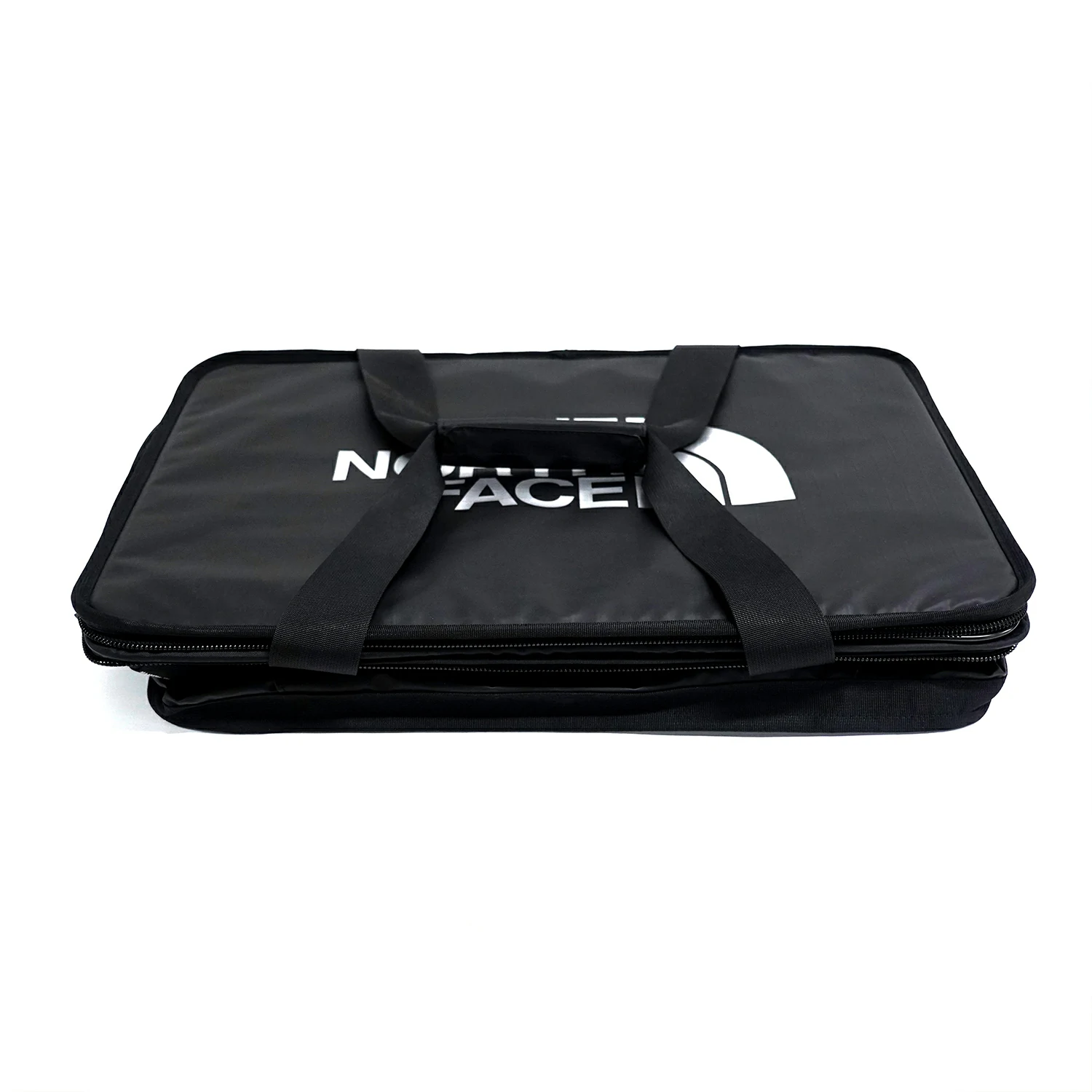

Result: The side walls lock firmly into a 90-degree vertical position, allowing the boxes to be stacked three high (fully loaded) without buckling. When not in use, the mechanism collapses smoothly flat, meeting the client's space-saving requirement.
Durability: We reinforced the rod pivot points with high-abrasion Hypalon patches internally to prevent the metal hardware from wearing through the liner over repeated cycles.

B. Mastering TPU Laminates

Handling the "sticky" TPU laminate required a specialized production line setup.
Equipment: We utilized compound-feed (walking foot) machines equipped with Teflon-coated presser feet. This setup eliminates surface friction, ensuring smooth material feeding and consistent stitch length (SPI).
Needle Cooling: To prevent the needle heat from melting the waterproof TPU coating during high-speed sewing, we employed active air-cooling on the needle bars.

C. Heavy-Duty Reinforcement

A 90L box loaded with climbing gear can exceed 35kg. Standard stitching would fail at the handle joints.

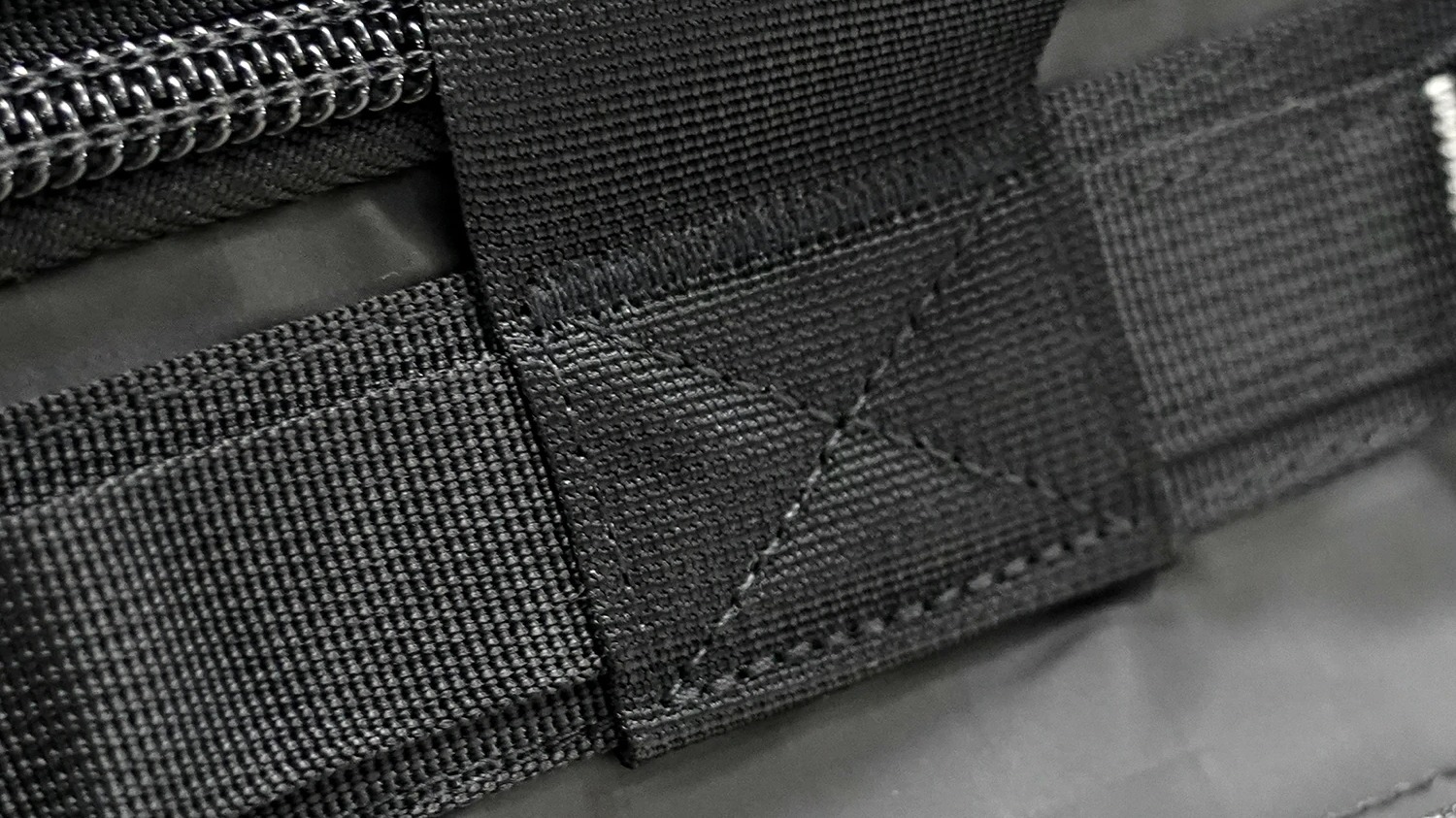

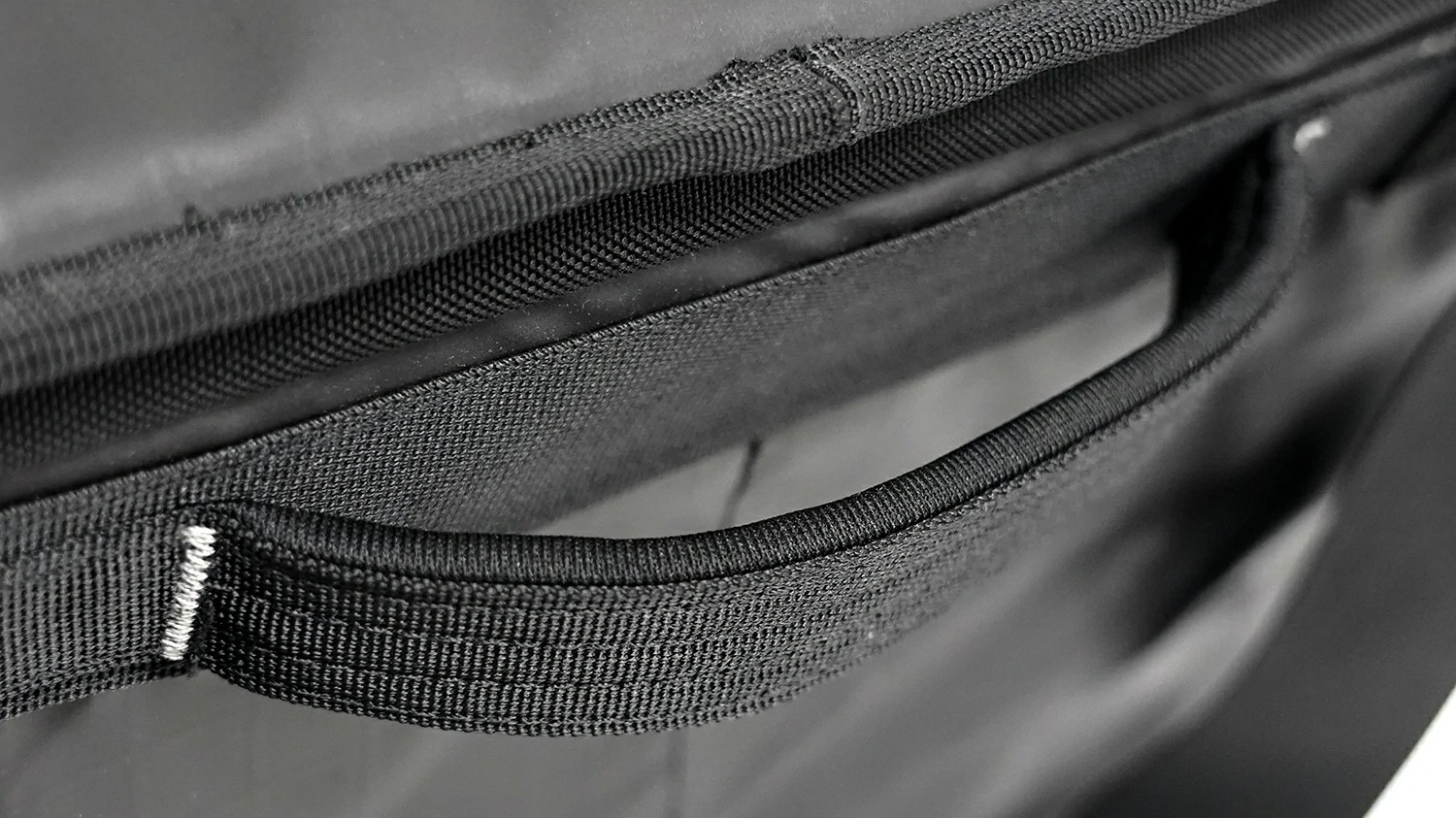

The Fix: We implemented automated Box-X bartacking on all webbing anchor points (side handles and duffel straps). During the pre-production sample (PPS) stage, we identified high-stress zones on the "Daisy Chain" webbing and added internal backing layers to prevent tear-out.

Quality Assurance (QC) Protocol

Before final shipment, the 90L Gear Box underwent Dingfeng’s rigorous "Expedition Standard" testing:

Stacking Test: Loaded boxes must withstand being stacked 3-high for 24 hours without structural collapse of the metal rods.
Mechanism Cycle Test: The folding metal kickstands were cycled (opened/closed) 500 times to verify that the internal fabric sleeves would not wear through.
Abrasion Test: The bottom panel was subjected to drum testing to simulate rough handling on concrete and gravel.

Conclusion

The 90L Base Camp Gear Box demonstrates Dingfeng IBagcase’s ability to execute complex structural soft goods. We moved beyond simple sewing to deliver a fully engineered logistical solution, perfectly matching the "quality of product" requested in the original design brief.
