Manufacturing Protocol: Engineering the YETI Hopper Flip 18 Soft Cooler

The Manufacturing Challenge

The Hopper Flip 18 is not a standard sewn bag; it is a pressurized vessel. Unlike traditional "cut-and-sew" soft coolers, this product requires heavy-duty industrial engineering. Upon reviewing the Tech Pack, our engineering team identified three critical production barriers:

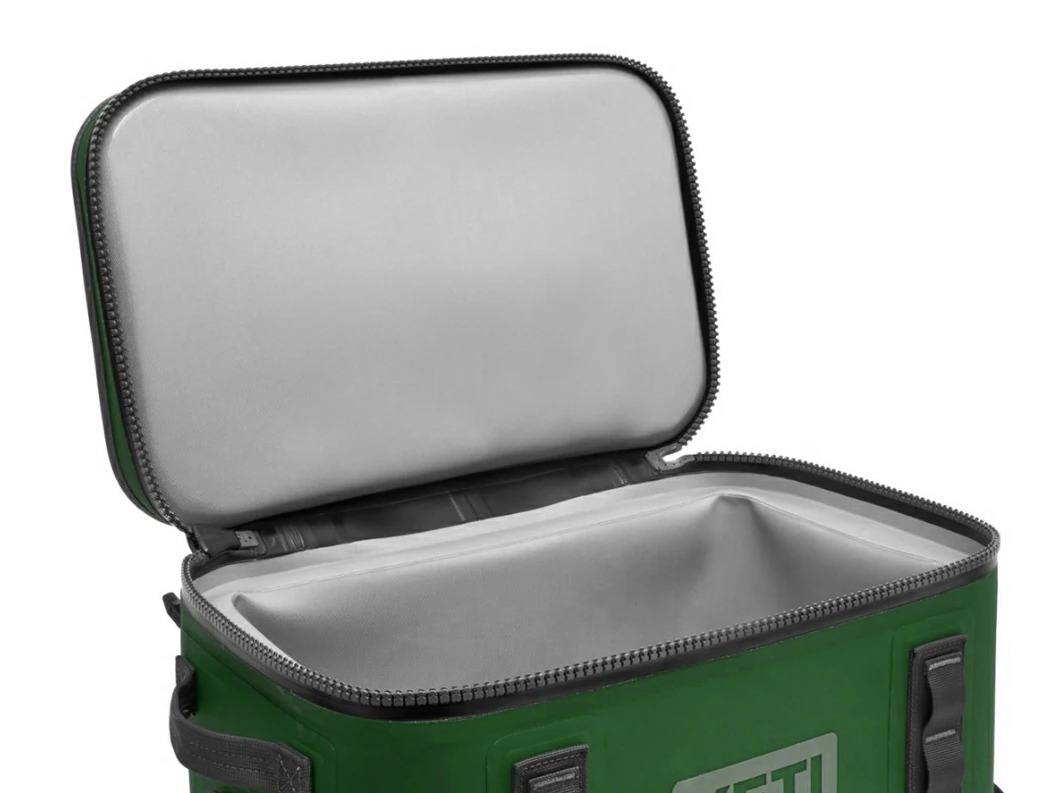

The "HydroLok" Zipper Installation:

This hazardous-material-grade zipper is extremely rigid. A misalignment of >0.5mm during installation causes the teeth to buckle, compromising the airtight seal.

Cubic Corner Welding:

The "DryHide" shell is stiff and difficult to manipulate. Forming sharp 90-degree corners on a soft material without creating micro-leaks or wrinkles requires custom tooling that standard RF machines do not possess.

Insulation Compression:

Inserting the high-density closed-cell foam between the inner and outer shells without creating air gaps (thermal bridges) or deforming the outer fabric is technically demanding.

Dingfeng’s Technical Solutions

To execute this project, Dingfeng iBagcase reconfigured a dedicated production line utilizing 25kW High-Frequency (RF) Welding technology.

A. Precision RF Tooling

Traditional heat sealing was insufficient for the 840D TPU material.
Solution: We engineered custom Copper-Beryllium electrodes specifically for the Hopper’s corner geometry.
Process: By precisely calibrating the voltage frequency and dwell time, we achieved a molecular fusion of the inner and outer shells. This created a unibody construction that eliminates the needle holes found in stitched bags.

B. Semi-Automated Zipper Fixture

To resolve the HydroLok alignment issue, manual placement was eliminated.
Solution: We developed a proprietary alignment jig that locks the zipper tape in parallel tension with the bag opening.
Reinforcement: The zipper's "U-Dock" terminal—the high-stress point—was reinforced with a secondary high-pressure weld to prevent delamination during aggressive opening actions.

C. "Negative Pressure" Foam Insertion

Solution: Instead of force-fitting the insulation, we utilized a vacuum-assist technique. The closed-cell foam is slightly compressed using negative pressure for insertion, then released to expand and lock perfectly against the TPU shell. This ensures a smooth exterior surface and maximum thermal efficiency.

D. HitchPoint Grid Automation

Solution: The exterior webbing is attached using Computerized Programmable Sewing Machines (Bar-tack) onto a reinforced backing plate before the final lamination. This provides extreme tensile strength for accessories without penetrating the waterproof liner.

Quality Control Protocols

At Dingfeng iBagcase, visual inspection is replaced by functional stress testing for this product line:

100% Inflation Test: Every single liner is inflated with compressed air (3 PSI) and submerged in water tanks for 60 seconds. Any bubble formation results in immediate rejection.

24-Hour Retention: Random batch samples are kept inflated for 24 hours to monitor for slow leaks.

Handle Load Test: Top and side handles undergo a static load test of 50kg (approx. 2x max load) to ensure RF weld integrity.

Spectral Color Matching: "Camp Green" and "Charcoal" tones are verified using spectrophotometers to ensure Delta-E < 1.0 consistency across different material batches.

Production Results

Defect Rate: Reduced to <0.1% via automated RF welding processes.
Consistency: Successfully delivered consistent seasonal volume for US and EU markets.
Performance: All units met or exceeded the "Ice Retention" and "Leakproof" benchmarks set by the client's Golden Sample.
